High Speed Paper Cup Making Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Mingguo Minchery
[China]

Address
Feiyun District, Feiyun Street Wenzhou Zhejiang
Phone
86-181-29507235
Contact name
Shawn Lee

Quick Information

  • Brand Name: MG
  • Place of Origin: China
  • Model Number : MG-C800
  • :

Description



Basic Info.

Model NO.
MG-C800
Certification
CE, SGS
Customized
Customized
Condition
New
Lubrication
Automatic Spray Lubrication System
Drive
Cam and Helical Gear Driven System
PLC
Delta/Siemens
Touch Screen
Delta/Siemens
Servo Feeding System
Delta/Siemens
Inverter
Delta/Siemens
Ultrasonic
Ever Green, Taiwan
Bottom Heater
Leister, Switzerland
Motors
Gpg Motor
Trademark
MINGGUO
Transport Package
Wooden Case
Specification
2600*1600*1850mm
Origin
China
HS Code
84414000













MG-C800, a latest developed 3-rotary disc type low mold stroke paper cup machine, achieves a cup making speed of 90-120pcs/min and in the actual development test, the maximum speed can reach 133pcs/min. This machine is more suitable for the paper cups of single specification. Compared with MG-C600 (60-90pcs/min), MG-C700 (60-80pcs/min), we reversed the previous design and redesigned a more optimized mechanical transmission and forming system. Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Meanwhile, it adopts open type intermittent cam system and helical gear transmission, which makes up for the inherent insufficiency of jitter and unstable transmission of chain transmission and greatly prolongs the service life of the machine and reduces the failure rate of the machine. While ensuring high accuracy, it guarantees the stability of the machine's operation, low noise and high production capacity.


Cup wall and the bottom of the cup are sealed with LEISTER bottom heaters and EVER GREEN Ultrasonic side heater imported from Switzerland and Taiwan.


The whole cup making process is controlled and monitored by Delta/SIEMENS inverter, Delta/SIEMENS servo feeding, Delta/SIEMENS PLC programmable controller, Delta/SIEMENS touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running. High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.

ModelMG-C800
Paper cup specifications4-16oz
(100-450ml) (mold exchangeable)
Top: 55-85mm
Height: 60-135mm
Bottom: 55-70mm
Paper specification150-350 GSM single/double PE coated paper
Speed90-120pcs/min
Voltage220/380V
Full load power10KW
Total weight3500KG
Dimensions2600*1600*1850mm
(NOTICE) CustomizationCustomizable
Almost all of our paper container forming machines can be modified and customized for Paper cups and Paper bowls.


Please let us know your cup/bowl specifications and any of the other requirements, we will offer the professional solution to you.

FAQ

1. What products can be made by your machines?
    Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
     Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
    From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
    Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
    Usually 30%T/T  in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
     --Sample pictures

     --Specifications of cups (Top diameter, Bottom diameter, Height)
        Draft is the best if possible.

     --GSM of single/double PE coated paper


Certificates

  • CE : ZJM2014080806

Price

  • Delivery Port : Ningbo

Packaging & Delivery

  • Packing :1 set per wooden case
  • Packaging Size : 2600 x 1600 x 1850  Millimeters
  • Package Weight : 3500  Kilograms
  • Delivery Lead Time : 50-60 days
  • Supply Ability : 500 sets per Year

Product Image

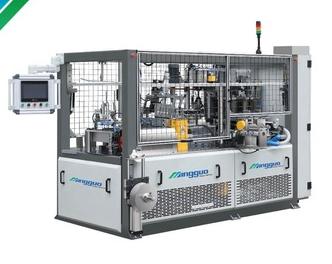

  • High Speed Paper Cup Making Machine image
